Foam And Pump Together Cement Foaming Machine

  • Hot Sale Foaming Concrete Construction Machine
  • Hot Sale Foaming Concrete Construction Machine
  • Hot Sale Foaming Concrete Construction Machine
  • Hot Sale Foaming Concrete Construction Machine
Hot Sale Foaming Concrete Construction MachineHot Sale Foaming Concrete Construction MachineHot Sale Foaming Concrete Construction MachineHot Sale Foaming Concrete Construction Machine

Hot Sale Foaming Concrete Construction Machine

  • Brand Name:HT
  • Type:Foaming Concrete Machine
  • Model Number: 100A-102D
  • Place of Origin: Henan, China (Mainland)
  • INQUIRY BUY NOW

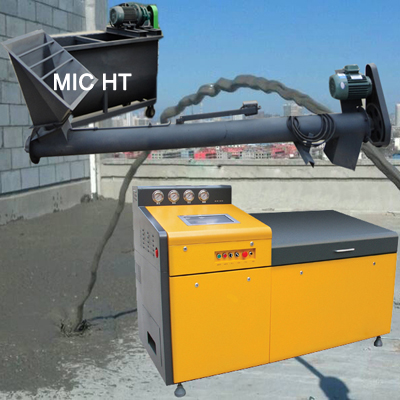

Foam Generator Machine For Foam Cement:

Application And Features:

1 Fine Structure:

1.1 Machine casing with Taiwan precision sheet metal,car-grade spraying, elegant appearance.

1.2 Machine body is integrately designed, small size, light weight,can use manual forklift to move, or directly welded and fixed to the vehicle to save cost.

2 Advanced Controlling System:

2.1 Master control system uses the most advanced single-chip arithmetic control, each subsystem is modularly designed,easy to upgrade and maintain, high reliability.

2.2 Foaming system uses electronic foaming and frequency conversion metering pumping technology, can accurately control the amount of foaming agent.

2.3 Foaming agent metering adopts frequency conversion metering pump,can accurately control the amount of foaming agent.

2.4 Using the most advanced high-pressure pneumatic pumping system, synchronously achieve big output and high transport height,easy maintenance and low cost.

3 Low Power Consumption:

3.1 Low electricity consumption, the total power is only one fourth of the corresponding hydraulic pump.

3.2 Compared with other similar devices, our product can save 50-100 kg cement per cubic product, greatly reduce production costs and improve economic efficiency.

4 First Class Operation System:

4.1 Manual and automatic operation, free conversion.

4.2 Digital controlling,the operation is very easy to learn.

4.3 Electrical box with a remote control handle,all functions can be remotely operated.

Technical Parameters Of Different Models:


101A Foaming Concrete Construction Machine:

Model

101A

Voltage

380 V

Power

4 KW

Output

10-12 M3/h

Vertical Conveying Height

60 M

Level Conveying Distance

600 M

Particle Size

≤1.5 CM

Max Pressure

2.0 Mpa

Outlet pressure

1.5 Mpa

Dimensions (L * W * H)

1500*900*900 mm

Weight

480 Kg

Total Weight

960 Kg


102A Concrete Foaming Construction:

Model

102A

Voltage

380 V

Power

5.5 KW

output

15-20 M3/h

Vertical Conveying Height

100 M

Level Conveying Distance

600 M

Particle Size

≤1.5 CM

Max Pressure

2.0 Mpa

Outlet Pressure

1.5 Mpa

Dimensions (L * W * H)

1500*880*1380 mm

Weight

500 Kg

Total Weight

980 Kg


102B Concrete Foam Construction:

Model

102B

Voltage

380 V

Power

7.5 KW

output

25-30 M3/h

Vertical Conveying Height

120 M

Level Conveying Distance

1000 M

Particle Size

≤1.5 CM

Max Pressure

2.0 Mpa

Outlet Pressure

1.5 Mpa

Dimensions (L * W * H)

1700*880*1380 mm

Weight

600 Kg

Total Weight

1080 Kg


102C Foaming Concrete Construction Machine:

Model

102C

Voltage

380 V

Power

11 KW

output

50-60 M3/h

Vertical Conveying Height

80 M

Level Conveying Distance

800 M

Particle Size

≤1.5 CM

Max Pressure

2.0 Mpa

Outlet Pressure

1.5 Mpa

Dimensions (L * W * H)

1950*880*1380 mm

Weight

700 Kg

Total Weight

1180 Kg

foaming concrete construction machine


concrete foaming construction


concrete foam construction


foaming concrete construction machine


cement foaming agent

concrete foaming agent

clc block foaming agent

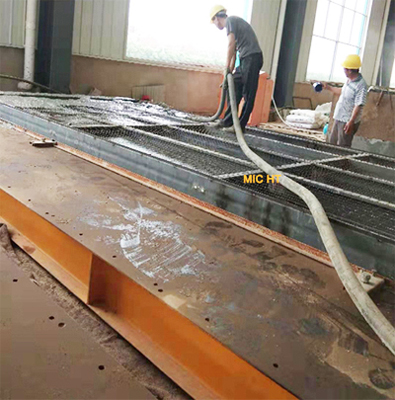

You can produce different types of bricks/blocks by pouring the foaming concrete to different moulds :


Here are brick moulds:

foaming concrete construction machine


Here is block mould:

concrete foaming construction


Here is wall mould:

concrete foam construction

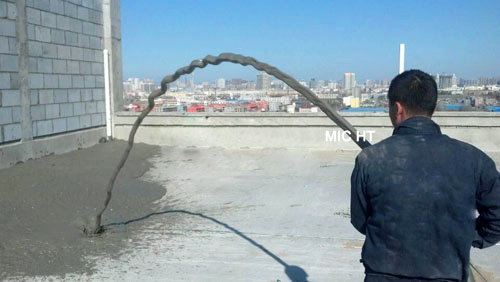

Here is construction for pouring insulation floor layer:

foaming concrete construction machine


Cement foaming pumping equipment machine:


Cellular lightweight concrete CLC block brick production machine:
