Foam And Pump Together Cement Foaming Machine

Foam And Pump Together Concrete Foaming Machine

Foam And Pump Together Concrete Foaming Machine

Brand Name:HT
Type:Foaming Concrete Machine
Model Number: 100A-102D
Place of Origin: Henan, China (Mainland)
INQUIRY BUY NOW

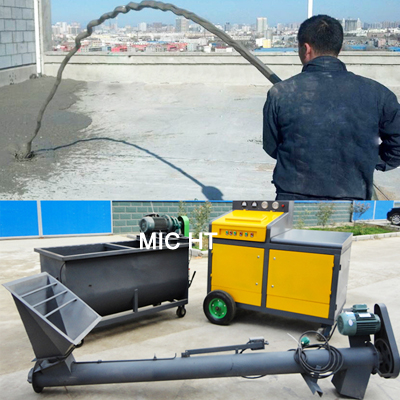

Foam And Pump Together Concrete Foaming Machine:

Application And Features:

1 Fine Structure:

1.1 Machine casing with Taiwan precision sheet metal,car-grade spraying, elegant appearance.

1.2 Machine body is integrately designed, small size, light weight,can use manual forklift to move, or directly welded and fixed to the vehicle to save cost.

2 Advanced Controlling System:

2.1 Master control system uses the most advanced single-chip arithmetic control, each subsystem is modularly designed,easy to upgrade and maintain, high reliability.

2.2 Foaming system uses electronic foaming and frequency conversion metering pumping technology, can accurately control the amount of foaming agent.

2.3 Foaming agent metering adopts frequency conversion metering pump,can accurately control the amount of foaming agent.

2.4 Using the most advanced high-pressure pneumatic pumping system, synchronously achieve big output and high transport height,easy maintenance and low cost.

3 Low Power Consumption:

3.1 Low electricity consumption, the total power is only one fourth of the corresponding hydraulic pump.

3.2 Compared with other similar devices, our product can save 50-100 kg cement per cubic product, greatly reduce production costs and improve economic efficiency.

4 First Class Operation System:

4.1 Manual and automatic operation, free conversion.

4.2 Digital controlling,the operation is very easy to learn.

4.3 Electrical box with a remote control handle,all functions can be remotely operated.

Technical Parameters Of Different Models:

101A Concrete Foaming Machine:

Model	101A
Voltage	380 V
Power	4 KW
Output	10-12 M3/h
Vertical Conveying Height	60 M
Level Conveying Distance	600 M
Particle Size	≤1.5 CM
Max Pressure	2.0 Mpa
Outlet pressure	1.5 Mpa
Dimensions (L * W * H)	1500900900 mm
Weight	480 Kg
Total Weight	960 Kg

102A Foaming Concrete Machine:

Model	102A
Voltage	380 V
Power	5.5 KW
output	15-20 M3/h
Vertical Conveying Height	100 M
Level Conveying Distance	600 M
Particle Size	≤1.5 CM
Max Pressure	2.0 Mpa
Outlet Pressure	1.5 Mpa
Dimensions (L * W * H)	15008801380 mm
Weight	500 Kg
Total Weight	980 Kg

102B Concrete Foam Machine:

Model	102B
Voltage	380 V
Power	7.5 KW
output	25-30 M3/h
Vertical Conveying Height	120 M
Level Conveying Distance	1000 M
Particle Size	≤1.5 CM
Max Pressure	2.0 Mpa
Outlet Pressure	1.5 Mpa
Dimensions (L * W * H)	17008801380 mm
Weight	600 Kg
Total Weight	1080 Kg

102C Foam Concrete Machine:

Model	102C
Voltage	380 V
Power	11 KW
output	50-60 M3/h
Vertical Conveying Height	80 M
Level Conveying Distance	800 M
Particle Size	≤1.5 CM
Max Pressure	2.0 Mpa
Outlet Pressure	1.5 Mpa
Dimensions (L * W * H)	19508801380 mm
Weight	700 Kg
Total Weight	1180 Kg
