Home   |   Curb Pouring Machine--HT400

Curb Pouring Machine--HT400

  • 2022 Most Advanced Road Construction Machinery
  • 2022 Most Advanced Road Construction Machinery
  • 2022 Most Advanced Road Construction Machinery
  • 2022 Most Advanced Road Construction Machinery
2022 Most Advanced Road Construction Machinery2022 Most Advanced Road Construction Machinery2022 Most Advanced Road Construction Machinery2022 Most Advanced Road Construction Machinery

2022 Most Advanced Road Construction Machinery

  • Brand Name:HT
  • Model Number: HT400
  • Certification: ISO
  • Start-up Mode: Electric Start
  • INQUIRY BUY NOW

Slipform Curb Machine, Small Slipform Curb Machine For Sale:

Application And Features:

Road Construction Machinery is a special equipment for building road curb, road shoulder, side ditch and intermediate isolation belt by using cement concrete.

It is widely used in one-step forming of curbs of high-grade highways, county-level highways and municipal roads. As a new multifunctional synovial machine. A multi-purpose machine can be used to make curbs (shoulder boards) of various specifications such as curbs, road leveling stones, U-shaped water troughs, raised water retaining belts, etc. The mold connection method is stable and convenient. It can also be dismantled and replaced at any time, and the whole mold can be lifted and lowered by hydraulic control. The sensor system can be configured according to the needs, and it has the functions of automatic direction finding and automatic leveling along the lead wire, and the hydraulic mold lifting function is used, which greatly improves the construction quality and efficiency.

Technical Parameters:

HT400

Specifications

Features

Dimension

2400mmx1700mmx1100mm

Compact, easy to move

Weight

1100kg

Road Kurb Size range

Width≤600mm,height≤450mm

Is Widely applicable for kurbs

Parameters

Of engine set

Fuel

Diesel

Single-cylinder water-cooled diesel engine, simple and reliable

Power

8kw

Output voltage

380v,3 phases

Start-up mode

Electric start

Radiating way

Water cooling

The curbs molding way

Vibrator rod forming

Dry plastic concrete

High strength

Flat vibrator forming

Dry hard concrete

Beautiful appearance

Paving speed

1-4m/min

Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving

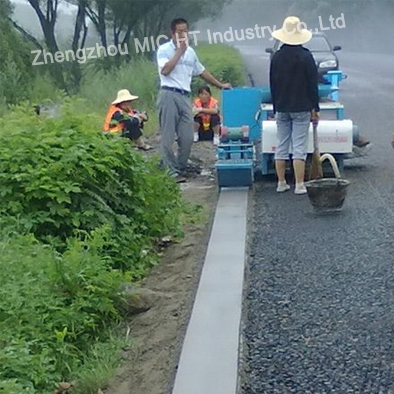

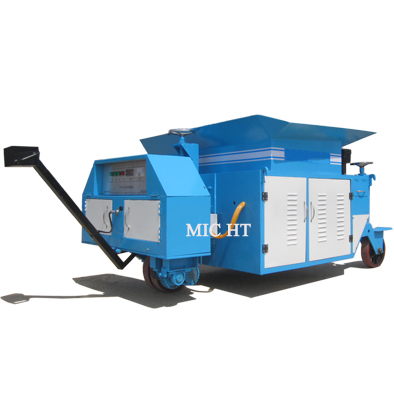

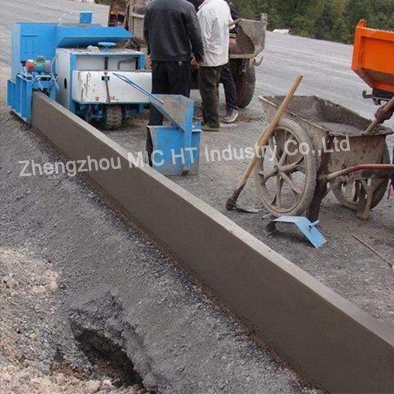

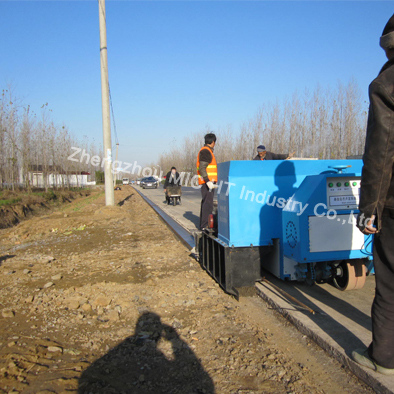

Road Construction Machinery Physical picture:




Road Construction Machinery drawing





Road Construction Machinery Packaging diagram :
