Curb Pouring Machine--HT400

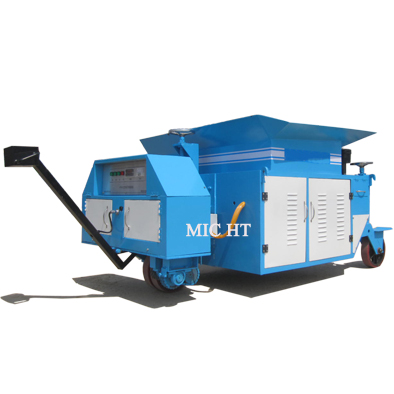

2022 New Designed Road Kerb Stone Machine

2022 New Designed Road Kerb Stone Machine

Brand Name:HT
Model Number: HT400
Certification: ISO
Start-up Mode: Electric Start
INQUIRY BUY NOW

Road Kerb Stone Machine:

Application And Features:

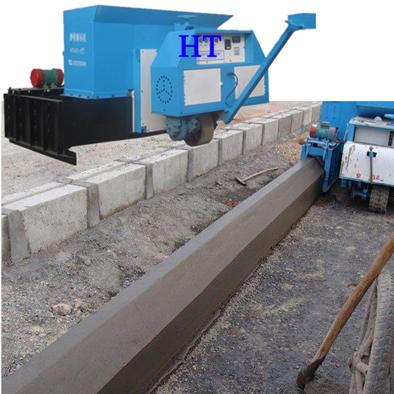

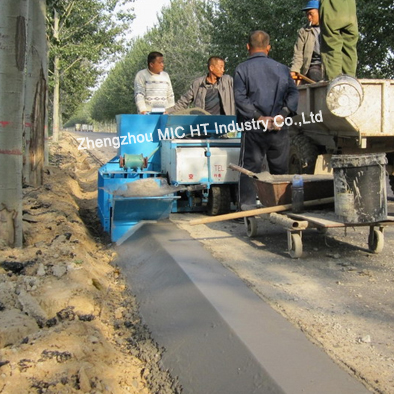

The Road Kerb Stone Machine is used for road shoulder sliding film action, drainage ditch sliding film operation, curb forming operation, etc. This type of machine is the carrier of engineering standards, including asphalt products and cement concrete road construction projects The industrial equipment for the curbs and drainage ditches on both sides of the center is composed of a walking mechanism, a vibration mechanism, a forming mechanism, a generator and a power distribution.

Technical Parameters:

HT400	Specifications		Features
Dimension	2400mmx1700mmx1100mm		Compact, easy to move
Weight	1100kg
Road Kurb Size range	Width≤600mm,height≤450mm		Is Widely applicable for kurbs
Parameters Of engine set	Fuel	Diesel	Single-cylinder water-cooled diesel engine, simple and reliable
	Power	8kw
	Output voltage	380v,3 phases
	Start-up mode	Electric start
	Radiating way	Water cooling
The curbs molding way	Vibrator rod forming	Dry plastic concrete	High strength
The curbs molding way	Flat vibrator forming	Dry hard concrete	Beautiful appearance
Paving speed	1-4m/min		Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving
