Concrete Grooving Machine

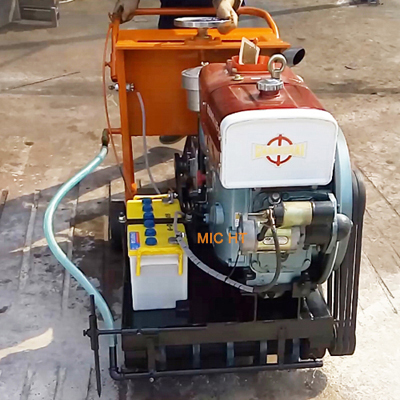

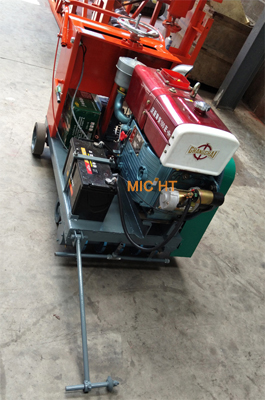

Road Concrete Planing Non-Slip Machine From HT

Application And Features Of Non-Slip Machine:

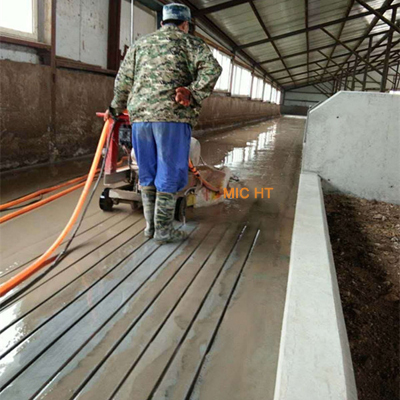

1 This product is an indispensable tool for building concrete pavement, widely used in building cement pavement, venues, airports, bridges, docks.

2 It is suitable for the mud road, roads, airport runways and other non-slip surface engraved slot.

3 Replacing the old tradition of suppression of non-slip method which uses plastic brush, broom, napping machine.

4 After grooved by this machine,the road surface is slip-proof, durable, smooth surface, both beautiful and generous.

Technical Parameters Of Road Planing Machine:

Model	WC-400
The Power Of Main Motor	7.5 kw
The Power Of Walking Motor	0.55 kw
The Rotary Speed Of Blade	2930 r/min
Depth Of Grooving	less than 25mm
Width Of Single Grooving	according to client’s requirement
The Diameter Of Blade	according to client’s requirement
Total Grooving Width One Time	400 mm
Working Speed	1.76 m/min (1 gear) 2.34 m/min (2 gear) 3.14 m/min (3 gear)
