Hot Sale Massey Ferguson Tractor

Type: Wheel Tractor
Place of Origin: Jiangsu, China (Mainland)
INQUIRY BUY NOW

Massey Ferguson Tractor:

With more than 160 years of innovation and experience, Massey Tractor is one of the world’s leading brands and a force in the global harvesting business.

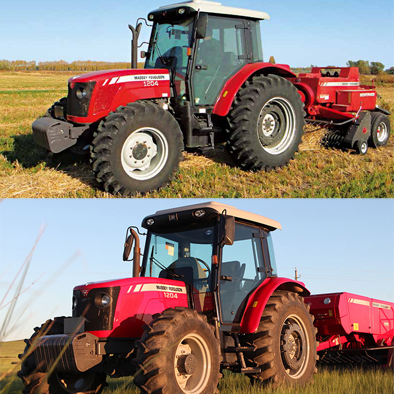

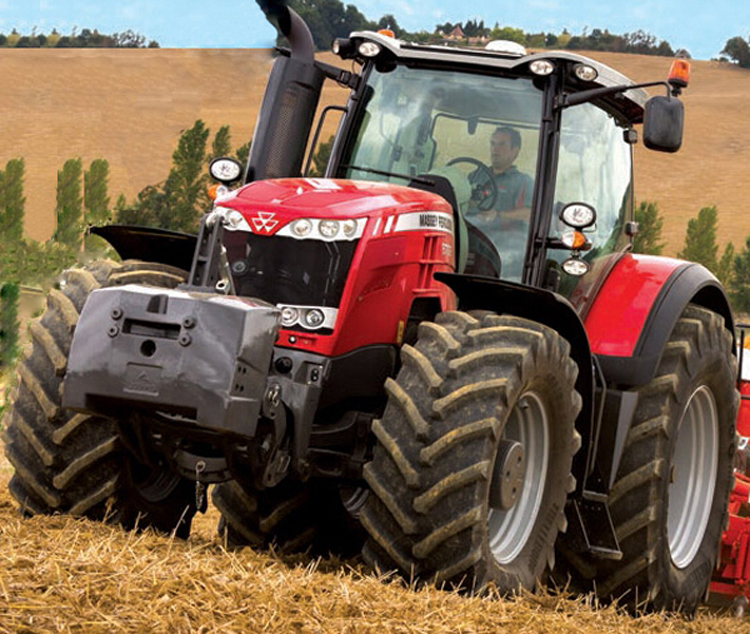

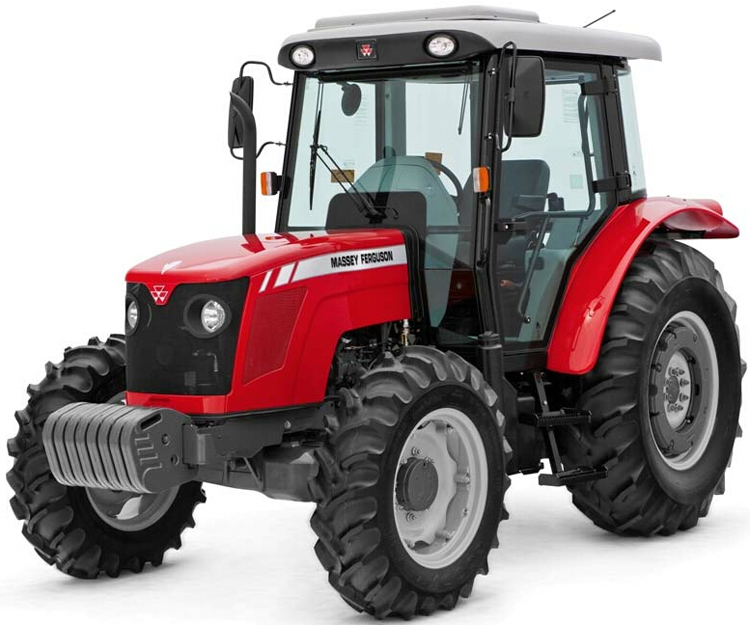

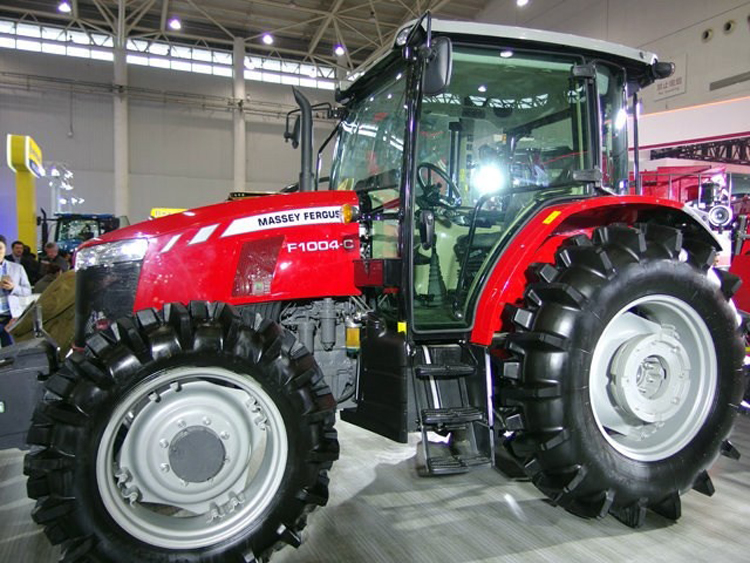

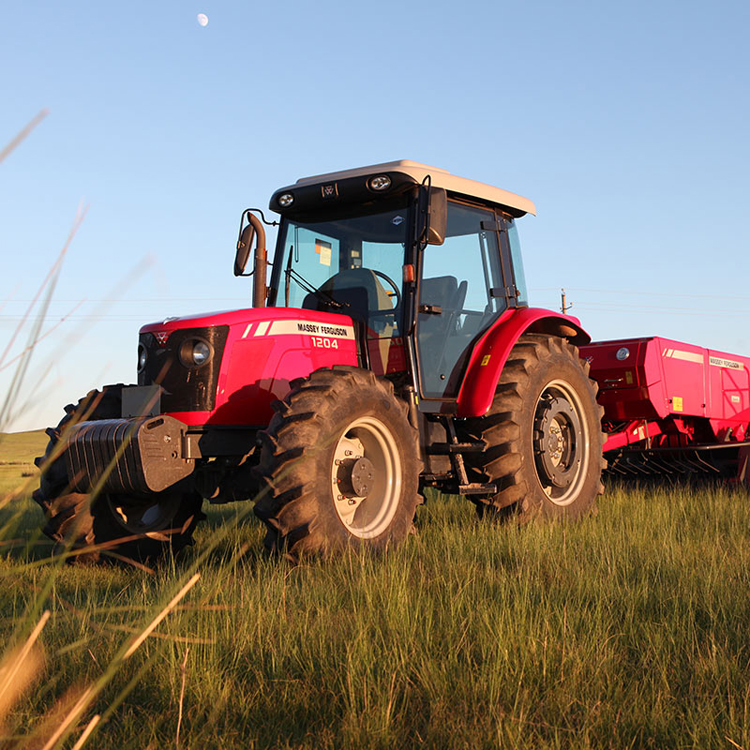

Massey Ferguson Tractor (100HP/120HP,Four-Wheels Driving)
Dimension	4330×2100×2955 mm
Wheel Base	2480 mm
Minimum Ground Space	385 mm
Minimum Operating Weight	4454 kg
Working Speed	2.30 - 32.10 km/h
Fuel Tank Capacity	145 L
Tire	14.9-24 / 18.4-34
Engine	Perkins 1104C-44T
Engine	Inline,4-strokes,direct injection
Air inlet mode	Turbo
Power	100HP/120HP2200 rpm
Max Torque	392 N.m/1400 rpm

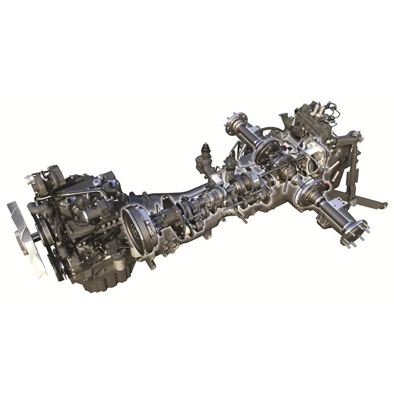

Transmission System
Clutch	dry, single clutch
Clutch	mechanical operation
Gear-box	12x4 synchronizer shift gearbox
Differential	mechanical differentials
Differential	jaw type differential lock
Front Bridge	central driving design
Front Bridge	automatic differential lock
Final Transmission	external planetary gear reduction device
Steering System	hydraulic steering
Braking System	hydrostatic two wheelsindependent brake, mechanical disc
Hydraulic System	open center hydraulic system.
Hydraulic Lifting System	II class, mechanical control
Hydraulic Lifting System	maximum lifting force at mounted point : 3800kg
Hydraulic Output Valve	Standard 2 valves, mechanical manipulation
Hydraulic Output Valve	Optional third valve
PTO	independent type,hydraulic control
	rotation speed : 540/1000rpm
	shaft Size: 6 keys 35 mm and 21 keys 35 mm
