Diaoyuan Stone Slipplasia Modeling Classification and Comparison

Diaoyuan Stone Slipplasia Modeling Classification and Comparison

Depending on the structure and working principle, the domestic roadbound stone sliding film molding machine is mainly divided into:

一. Hammer head (hitting hammer) squeezing roadbound stone sliding film molding machine (eliminated)

Working principle: In front of the molding mold, a hammer header is installed. The hammer head is performed by the piston -type movement. The cement concrete is pushed into the molding mold according to a certain period of time to squeeze the forming stone. Similar to the squeezing roadstone sliding film, the machine relies on the reaction of the hammer head to the back of the cement concrete. The forming road is a mortar cover.

shortcoming:
1. Structural reasons, you cannot pave the ground stone below the pavement.
2. Poor intensity of roads, paving too high, is too high to collapse.
3. The speed of work is not adjustable and slow.

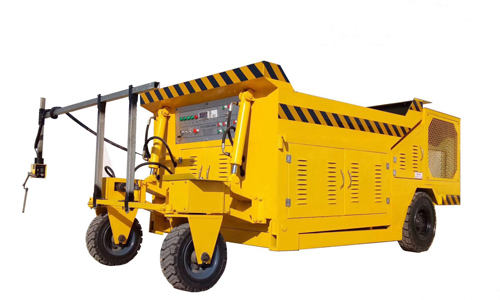

二. Vibration road along the stone sliding film machine
For example: KB20 roadbound stone sliding film machine

Working principle: There is a vibration pounding rod in the molding mold. Through the high -frequency vibration of the vibration rod, the cement concrete can achieve a certain denseness, and the machine relies on its own motivation to advance.
advantage:
1. The working speed is fast and can be adjusted according to the operating conditions.
2. The roadstone embedded below the pavement can also be paved.
3. The intensity of roads is high.

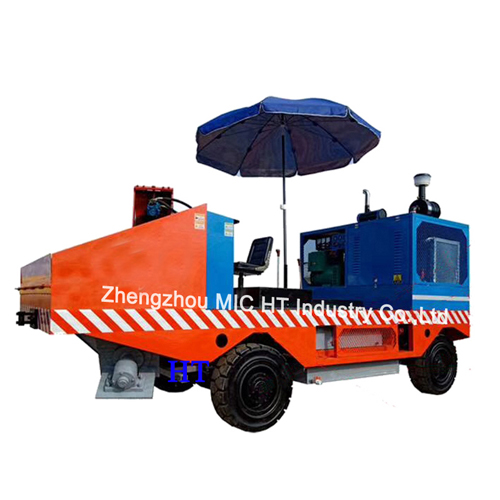

三. Vibration -type road stone sliding film machine
For example: HT800

Working principle: Install a high -frequency and low -amplifier vibrator on the molding mold. Through the vibration of the vibrator, the cement concrete can achieve a certain denseness. The machine relies on its own power to advance. Mortar hood noodles are used for molded roads.
advantage:
1. The working speed is fast and can be adjusted according to the operating conditions.
2. The roadstone embedded below the pavement can also be paved.
3. The shape of the road is beautiful.
